All Scenario Adaptability
Fully automatic and manual operation
Orchard Mode
Variable Rate
Application
Multi-directional Obstacle Sensing
Multidirectional Obstacle
Avoidance
Terrain Following
up to 50°
Four Sprinkler Kit (Optional)
Reverse Directional Spray
during Flight
4-sprinkler spraying,
flow rate 24 L/min
Heavy Payload
40 kg spraying
50 kg spreading
High Flow Rate
Spraying 16 L/min
Spreading 108 kg/min
Signal Stability
Offline operations
2 km O3 Transmission
Optional DJI Relay
Field Operations
21 hectares per hour
Orchard Operations
4 hectares per hour
Spreading Operations
1,500kg granules per hour
High Rate, Atomized Spray, Leak Free
DJI AGRAS T50's Dual Atomizing Spraying System provides an ultra-large flow rate of up to 16 L/min (2-sprinkler spraying). It produces uniform and fine spray droplets, and does not leak. DJI AGRAS T50 can be equipped with an additional pair of centrifugal sprinklers, increasing flow rate to 24 L/min (4-sprinkler spraying) for operations that require high application volume. When flying manually, use Reverse Directional Spray with four sprinklers to simplify operations without having to make turns.
Sprinkler Options
2 Sprinklers
16 L/min
4 Sprinklers
24 L/min
Spreader
108 kg/min
DJI AGRAS T50
Spreading System
1,500 kg per hour
DJI AGRAS T25's new spreader and spiral channel spinning disk significantly improve spreading efficiency and smoothness.
50kg
Payload
75 L max capacity and an expanded loading gate for quick refills.
Smooth
Spreading
The torque of the spreader is doubled and the discharge hatch is enlarged to enable a flow rate up to 108 kg/min.
Uniform Spreading
DJI AGRAS T50's spiral channel spinning disk makes spreading more uniform.
Low Rate Spreading
You can also switch to small hopper gates to improve spreading accuracy with a low flow rate.
Real-Time Weighing
DJI AGRAS T50 is equipped with a weighing sensor which allows you to monitor the remaining payload in real time.
Fast Disassembly and Cleaning
The spreader can be quickly disassembled and cleaned for easy maintenance.
Double your peace of mind with Binocular Vision and Dual Radar
DJI AGRAS T50 is equipped with front and rear Active Phased Array Radars with double the number of RF channels for higher detection precision. Together they enable Multidirectional Obstacle Sensing, elevating operating safety. Two sets of Binocular Vision sensors enable DJI AGRAS T50 to accurately sense terrain and depict obstacles in detail, for automatic obstacle bypassing and Terrain Following over steep slopes.
One drone for surveying, spraying, and spreading
DJI AGRAS T50 integrates aerial surveying, spraying, and spreading into a single drone. A high-resolution FPV gimbal camera enables real-time capture of field and orchard images. Paired with DJI RC Plus and RTK service, you can generate high definition maps which underpin subsequent automatic flight routes. DJI AGRAS T50 can take off and perform automatic operations, all at the push of a button.
Orchard Aerial Survey
DJI AGRAS T50 supports obstacle bypassing and Terrain Following for surveying[2] of orchards on slopes up to 20°[5]. With DJI RC Plus and its real-time mapping capabilities, it can automatically identify fruit trees and obstacles. Based on the distribution of the fruit trees, it can generate accurate and fully automatic 3D flight routes.

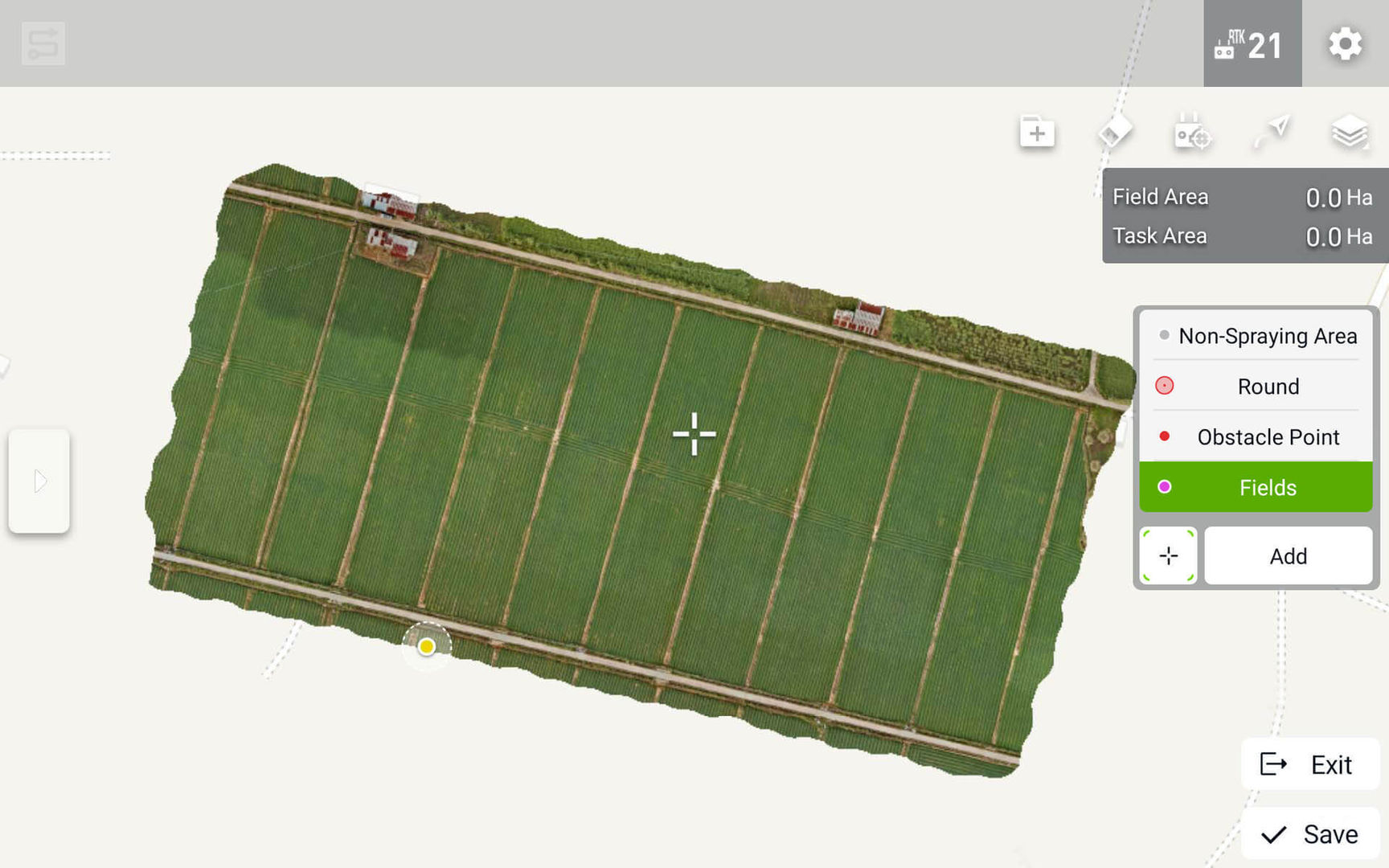

Field Aerial Survey
13 hectare field mapped in 10 minutes[12]
Survey the entire field, automatically identify field boundaries and obstacles, and plan more precise flight routes.
High Brightness Widescreen Remote Controller
DJI RC Plus has a 7-inch high brightness screen and an 8-core processor for smooth operations. Intelligent route planning minimizes distances flown with a full tank, greatly increasing operation efficiency. Manual mode allows you to control operations at will.
